Polyaxial Testing Systems
This unique experimental testing system is a customized solution used to study the behaviour of rock under various dimensional and compressive stress regimes (σ1 ≠ σ2 ≠ σ3). This fits to the research goals of geothermal energy researchers, hydrologists, petroleum reservoir engineers and researchers in the mining section, geophysics and geotechnical sectors. The systems are capable to test a wide range of materials from granite to mudstones and also for post-failure regime of high-strength brittle rocks.

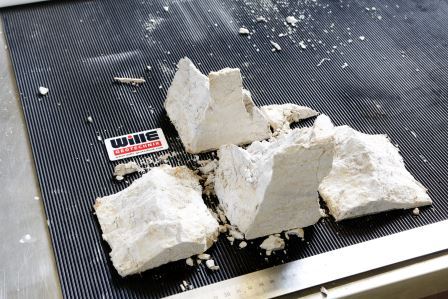

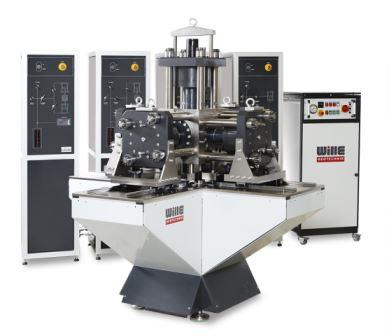

Polyaxial rock testing systems are designed to induce stress on cubic samples via three independent controlled principal axes (σ1 ≠ σ2 ≠ σ3) up to 600 MPa. The sample chamber can house cubic samples up to 300 mm and has the option to be equipped with a temperature control up to 200 °C as well as a pore pressure device up to 210 MPa and the ability to have continuous acoustic emission recording, acoustic velocity and permeability (transient or steady state) measurements.

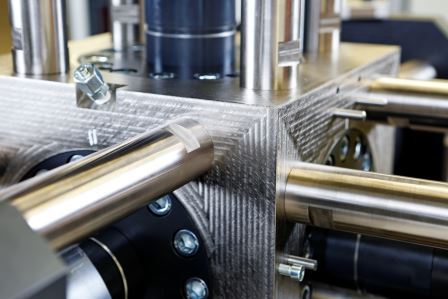

- High stiffness stand alone construction design
- 6 hydraulic actuators for applying independent stresses (σ1 ≠ σ2 ≠ σ3) capacity up to 600 MPa
- Cubical chamber for different sample sizes up to 300*300*300 mm
- High pressure platens are combined with a friction reduction system.
- 6 high precision displacement transducers to measure strains on each face
- Dynamic high speed closed-loop control of load, displacement, position and volume or flow
- Flexible controlling software for nearly unlimited test procedures of all polyaxial test applications
- The system is capable of applying different stress paths or strain rates
- Hydraulic power packs with high-quality noise protection, emergency functions
- Digital setting of PID parameters for test parameter optimization and tuning
- Real-time graphics software with zoom and freeze functions for printer output at any time
- Expandable real-time high resolution data acquisition and closed-loop control system
- Hydraulic fracturing test
- Permeability test

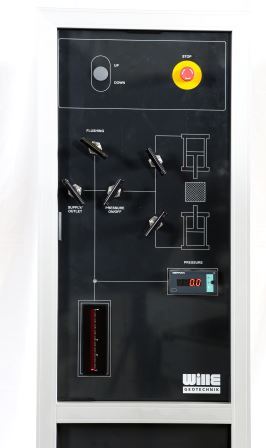

- Pore water pressure
- Unsaturated conditions
- System for measuring P- and S-wave in combination with acoustic emissions
- Temperature controlling up to 200 °C
Type of load frame |
Servo-hydraulic |
Max. stress |
Up to 600 MPa |
Specimen shape |
Cylindrical or cubic |
Specimen size |
From 25 mm cube core up to 300*300*300 mm |
Pore fluid |
Up to 150 MPa |
Temperature control |
Up to 200 °C |
Permeability test |
Steady state or transient |
Stroke of actuator |
100 mm |
Customized set-up available upon request.
The complete system is fully automated and controlled by our flexible and programmable GEOsys Software.
- Not available
- Detailed information will follow soon
