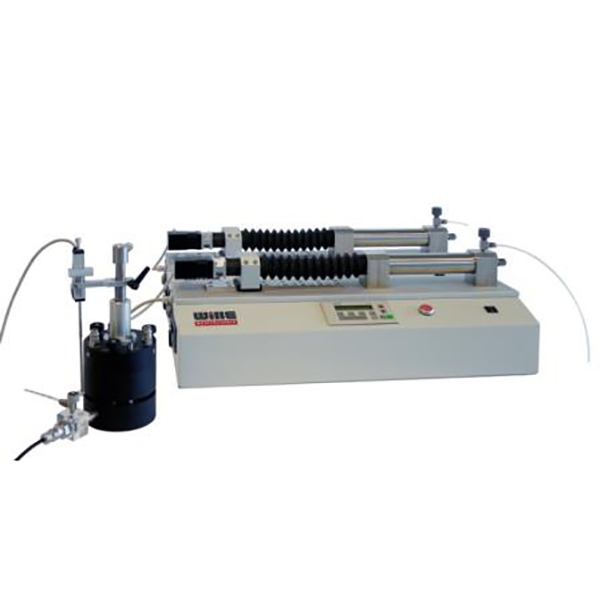

Rowe-Barden Consolidation Systems

Specially developed cells by Wille Geotechnik®:

  • K0 consolidation cells
  • Unsaturated consolidation cells (Prof. Schanz)
  • Swell pressure cells
  • Temperature controlled consolidation cell
  • High-pressure cell



These type of cells are designed for stress and strain controlled consolidation tests:

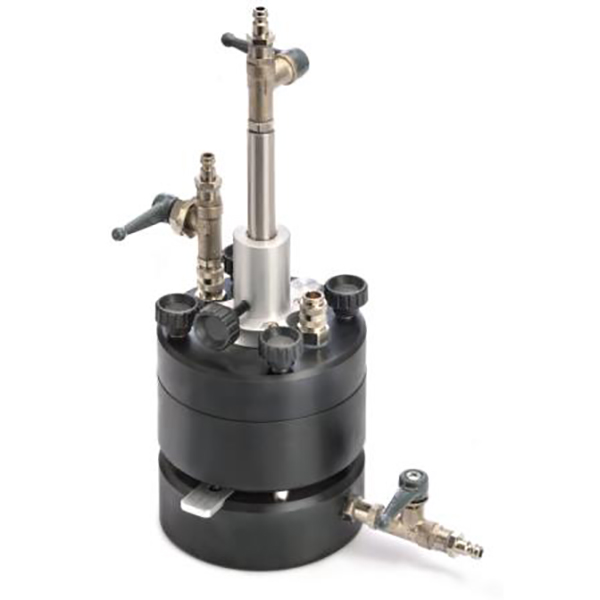

  • Rowe cells / Rowe Barden cells
  • CRS consolidation cells












  • CRS, CL, IL or swelling pressure tests
  • For use with different load frames and ranges
  • For all kinds of permeability test
  • Optional water pressure or load frames to gene- rate normal stresses
  • Expandable for unsaturated conditions
  • Applicable for all swell and swell pressure tests
  • Different sample heights are optional
  • For saturated conditions with pore pressure measurement or pore pressure/back pressure control
  • Air pressure for axial stress control



Specifications and components:

  • Available as corrosion-resistant material (optional)
  • Lower cylinder with 2 inlet and outlet connections, equipped with needle valves, stainless steel sample ring and stainless steel porous discs
  • Special flushing system for best de-aired conditions
  • Upper cell part with pressure and de-airing connection and needle valves
  • Teflon guided, low friction stainless steel load piston
  • Bracket for strain transducer

Sample area

20, 40, 70, 100 and 140 cm²

Sample height

20 mm (optional: up to 100 mm)

Pore pressure

Up to 1 MPa (optional 1.5, 3.5, 10 or 20 MPa)

  • Not available
  • Not available
  • ASTM D-2435
  • Standard Test Methods for One-Dimensional Consolidation Properties of Soils Using Incremental Loading

  • ASTM D-2435M-11
  • Standard Test Methods for One-Dimensional Consolidation Properties of Soils Using Incremental Loading

  • ASTM D-3877
  • Standard Test Methods for One-Dimensional Expansion, Shrinkage, and Uplift Pressure of Soil-Lime Mixtures

  • ASTM D-4186
  • Standard Test Method for: One-Dimensional Consolidation Properties of Soils Using Controlled-Strain Loading.

  • BS 1377-6
  • Methods of Test for Soils for Civil Engineering Purposes: Consolidation and Permeability Tests in Hydraulic Cells and with Pore Pressure Measurement

  • CEN ISO/TS 17892-5
  • Geotechnical investigation and testing -- Laboratory testing of soil -- Part 5: Incremental loading oedometer test

  • Detailed information will follow soon
