Conventional Triaxial Systems (Hoek-Cell)

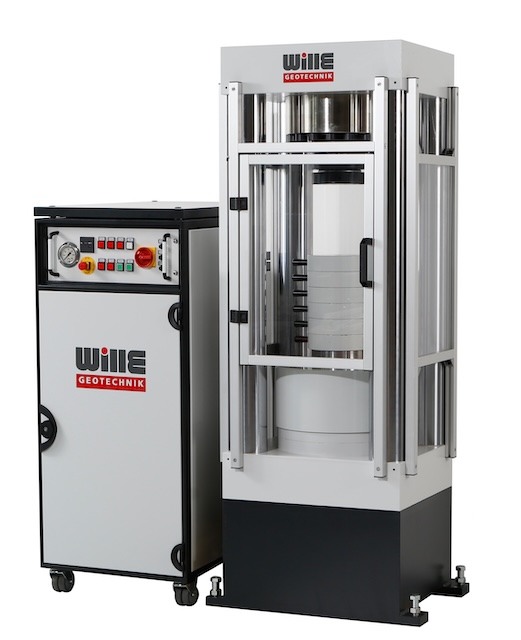

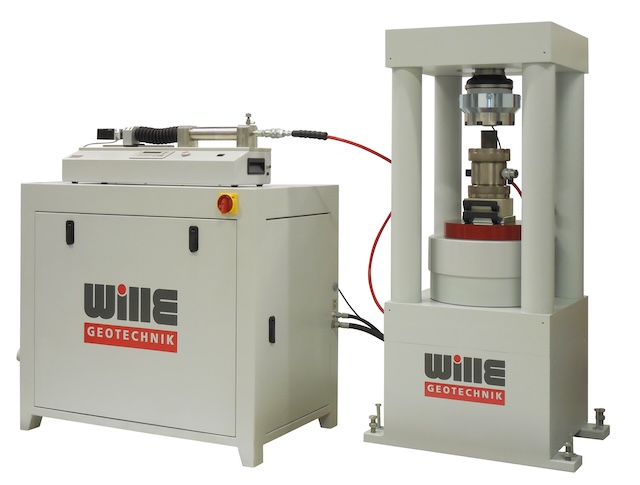

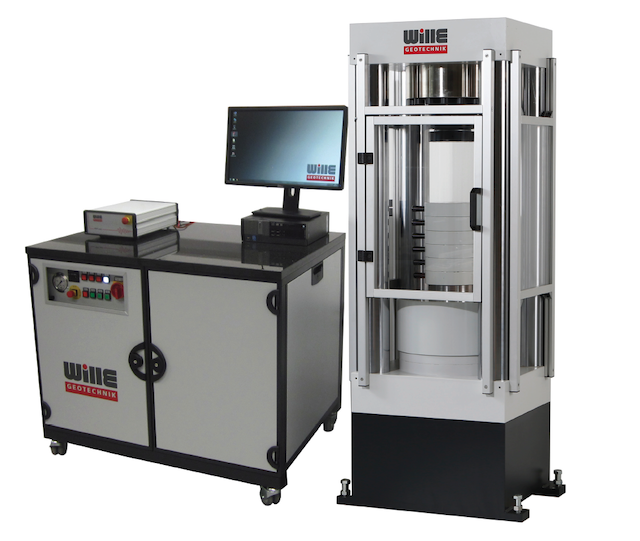

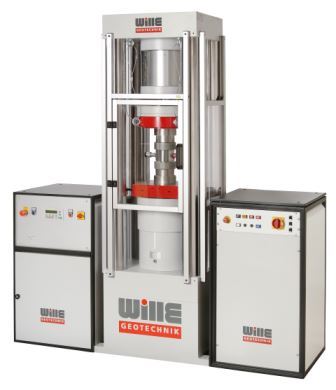

This rock triaxial testing system is designed and manufactured to perform uniaxial and triaxial tests according to ASTM standards and suggested ISRM methods. The system includes a hydraulic loading frame with power pack and applies increasing load at a constant rate. This can be used to test various materials, from soft sandstone to high-strength rock or building materials.

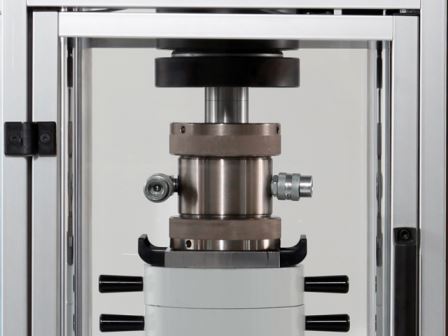

In this configuration we use Hoek cells in different sizes for triaxial tests e.g. AX, BX and NX. Confining pressure (lateral) could be applied by an automatic pressure system or manual pumping system for economic setup. The modular constructed system can be configured with different load ranges, load frames, test jigs for different specimen diameters.








  • Features
  • Specifications
  • Upgrade Options
  • Software
  • Standards
  • Applications
  • High stiffness 4 column construction design
  • Wall type construction is available for higher stiffness
  • Different frame sizes and load ranges from up to 2,000 kN
  • Cyclic loading on request
  • Optional accessories for permeability testing
  • Confining pressure generated by a semi-automatic pump or fully automatic pressure controller
  • Dynamic high speed closed-looped control of load, displacement, position and volume or flow
  • Flexible general controlling software for nearly unlimited test procedures of all uniaxial, triaxial and polyaxial test applications with pore pressure and permeability.
  • Expandable real-time high resolution data acquisition and closed-loop control system

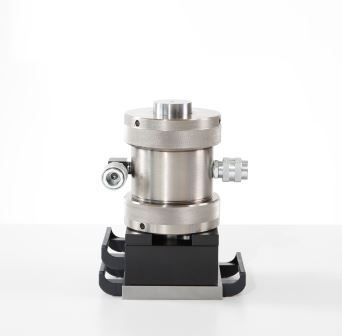

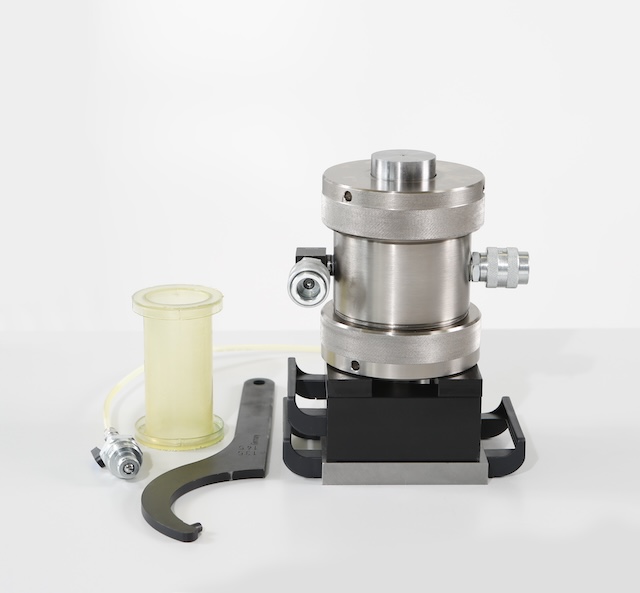

  • Hoek cells available in different sizes e.g. X, AX, BX, NQ, NX and HQ
  • Confining pressure up to 70 MPa (10 000 psi)
  • Hydraulic power packs with high quality noise protection, emergency functions or cyclic test procedures
  • Digital setting of PID parameters to test parameter optimisation and tuning
  • Real time graphics software with zoom and freeze functions for printer output at any time


Different test packages:

  • Uniaxial compression test package
  • Direct tension test package
  • Indirect tensile backage (Brazilian Test)
  • Fracture toughness testing package
  • Point load testing package
Type of load frame  Hydraulic / Servo-hydraulic
Compression load   Up to 3,000KN
Tension load capacity Up to 1,500KN
Confining pressure  Up to 70 MPa
Pore pressure  Up to 70 MPa
Frame stiffness Up to 3,000 kN/mm, > 3.0 X 10^9 N/m
Stroke  50 mm, optional up to 150 mm
Hardness  55 HRC / Customised
Sample sizes*  Up to HQ (from 38 to 63.5 mm)

*Custom sample sizes on request

The system can be upgraded to perform permeability tests on Hoek cells or the whole system can be upgraded by a triaxial cell with different specimen sizes, a standard high pressure-cell or a high pressure/high temperature version.

  • Temperature control for Hoek cell up to 120 °C
  • Permeability tests on Hoek cell under steady-state and unsteady-state conditions.

GEOsys software for user defined free programmable test standard procedures and complex test sequences by structured Windows operations on a graphic user
interface.

Through a series of menus, this provides quick access to all the controls needed for test set ups and follows standard test sequences.

The software is able to create an unlimited number of test stages with interactive and calculated parameters for closed-loop, real-time control. An unlimited number of control and measuring channels can be simultaneously controlled.


It is also possible to accept different modules for

  • extra tests
  • Individually configurable data acquisition (collection rate, parameter setting, recording type e.g. ASCII)
  • Interactive alteration of test parameters for all channels or test devices during the test
  • Various operator platforms for different users of the system parameter settings e.g. configuration, PID-parameters, transducer configuration, ranges plausibility.
  • Not available
  • Detailed information will follow soon
