Resilient Modulus Testing System

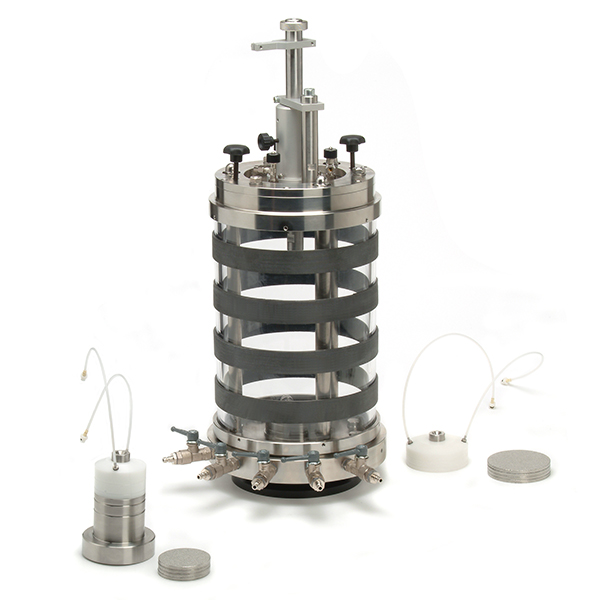

This series of high-quality, electromechanical or servohydraulic, closed-loop controlled triaxial load frames fulfil the criteria to perform resilient modulus tests.
These machines are characterized by their high levels of accuracy for static and cyclic automatic loading possibilities. GEOsys software enables us to produce all types of wave shapes, such as sine, square, haversine or different customized wave shapes. Thanks to the integrated keyboard, or alternatively the external controller, the operation of the test device is very user-friendly, meaning highly customized tests can be run. This configuration is ideal for educational and research purposes.










  • User defined test procedure with advanced
  • GEOsys software
  • Intelligent real-time PID controller to adjust the system according to the changing stiffness of the sample
  • Standard triaxial tests (CD, CU, UU)
  • Stress-path triaxial tests (p, q and s, t)
  • Resilient modulus
  • Uniaxial compression test
  • High precision strain, stress and position, closed-loop controlled load frame
  • Consolidation tests
  • Isotropic and anisotropic consolidation

Static axial load

Up to 100 kN

Cyclic axial load and frequency

5 kN / up to 15 Hz 10 kN / up to 15 Hz

Confining pressure

On request

Sample size

Up to 150 mm

Several upgrading features:

  • K0 Consolidation test
  • Unsaturated soil testing
  • Bender element tests
  • Permeability tests
  • Swelling and swelling pressure test

GEOsys Software

  • EN 13286-7:2004 (E)
  • Unbound and hydraulically bound mixtures. Cyclic load triaxial test for unbound mixtures

  • AASHTO T-292
  • Interim Method of Test for Resilient Modulus of Subgrade Soils and Untreated Base/Subbase Materials

    (replaced by AASHTO T-307)

  • AASHTO T-294
  • Standard Method of Test for Resilient Modulus of Unbound Granular Base/Subbase Materials and Subgrade Soil-SHRP Protocol P46

  • AASHTO T-307
  • Standard Method of Test for Determining the Resilient Modulus of Soils and Aggregate Materials

  • AASHTO T-307-99
  • Standard Method of Test for Determining the Resilient Modulus of Soils and Aggregate Materials

  • AASHTO TP-46
  • Standard Test Method for Determining the Resilient Modulus of Soils and Aggregate Materials

    (replaced by AASHTO T-307)

  • Austroads AG:PT/T053
  • Determination of permanent deformation & resilient modulus characteristics of unbound granular materials under drained conditions

  • Detailed information will follow soon
