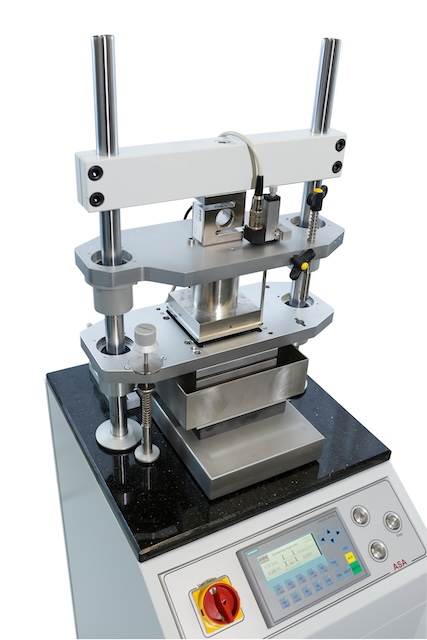

Direct-Residual Shear Apparatus

This electromechanical test apparatus is a robust construction device including of high-quality mechanic and electronic components which produces repeatable test results and the excellent quality makes it suitable for research and also usual test applications.

It applies vertical and horizontal independent loads by electromechanical actuators which enables each axis to be controlled in displacement (strain or velocity) mode as well as load control. The apparatus with reversible electromechanical motor is used for direct shear tests and also residual strength test.

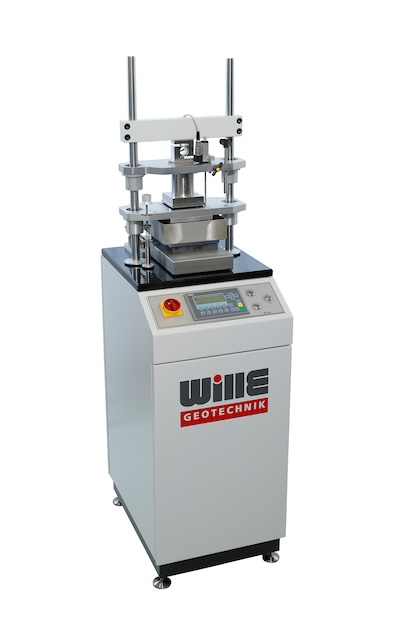

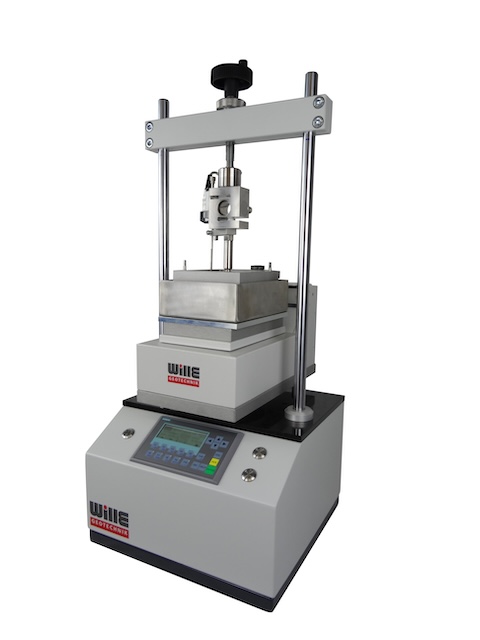

The apparatus comes in two models, one is bench-top and another one is standalone unit. The bench type has a small footprint. Both are suitable for testing of shear parameters of soil e.g. Cohesion and the effective friction angle.

Inquiry

Get general catalogues

Features
Specifications
Upgrade Options
Software
Standards
Applications

Suitable for highly precise direct shear tests in practise and research

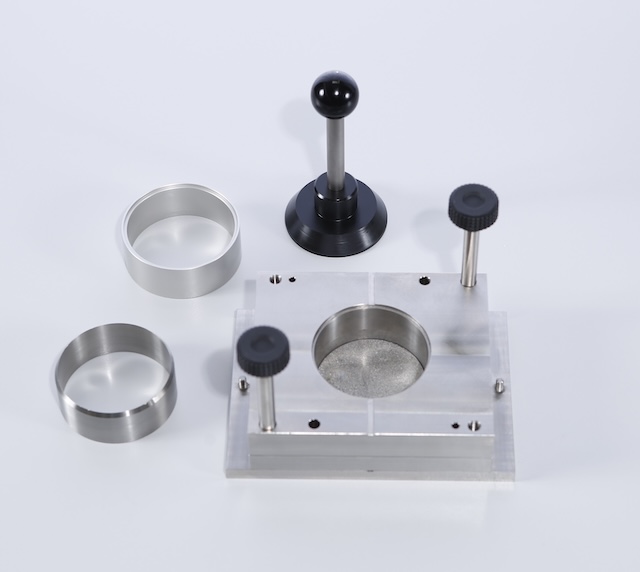

The complete shear box system is made of stainless steel, incl. porous plates, load piston and water container for saturated conditions
The main advantage is an accurate testing of soil parameters without tilting and friction between shear box components (e. g. load piston, upper shear box, lower shear box)
The normal stress and the shear stress are closed-loop controlled by an electromechanical precision drive system
The device can be operated by the touch sensitive keypad or fully automatic by a computer with adecuate control software
Standard direct shear boxes:
- Square size: 60 x 60 mm ( 36 cm² )
- Square size: 100 x 100 mm (100 cm²)
- Circular: Ø 60 mm (28.27 cm²)
- Circular: Ø 71.4 mm (40 cm²)
- Circular: Ø 80 mm (50 cm²)
- Circular: Ø 94.4 mm (70 cm²)

Note: Other sizes are available on request

Maximum shear force (standard)	5 / 10 kN
Maximum normal force (standard)	5 / 10 / 20 kN
Shear displacement	+/-25 mm
Accuracy class	0.1 %
Resolution	0.00001 kN
Shear rate	30 – 0.000001 mm/min
Rated power	< 200 W
Dimensions (DWH)	4004001500 mm

Bender Element Test Package
Extension package for Simple shear test (For ASA Model)
Extension package for Oedometer/Consolidation test (For ASA Model)
Extension package for Triaxial test (For ASA Model)
Temperature control package (For ASA Model) for low and high temperatures

GEOsys is designed for closed-loop controlled static & Dynamic tests for all test applications in material testing, such as stress-controlled, strain-controlled, any kind of waveforms like sine, rectangle, triangle, and predefined waves.

It is controlling and data acquisition software and also has different modules to run tests according to ASTM or other standard methods. Depends on the requirement of the customer one or several modules would be delivered with main software, such as:
