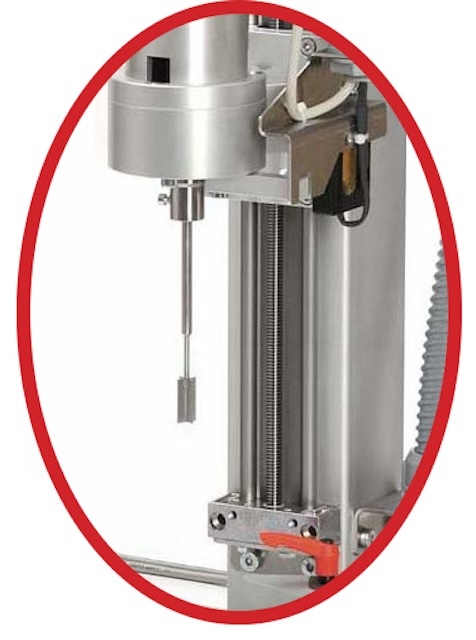

Fully Automatic Laboratory Vane Shear Tester
The shear Vane testing is used to determine the total shear resistance of normally cohesive, un-drained soils (especially soft clays) by fast shearing and is mostly useful for soils with low shear strength.

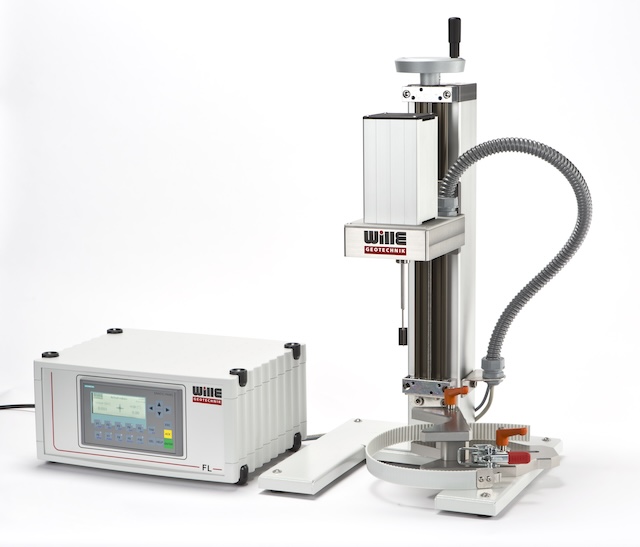

The fully automatic lab vane was developed and designed according to the latest scientific and research insights and requirements so that undisturbed soil samples (e.g., core cutters) as well as treated samples (e.g., Proctor samples) or artificial mixtures can be tested for practical applications as well as for research purposes.
- Features
- Specifications
- Software
- Standards
- Applications
- Control and evaluation software
- Fulfills all standards (BS, DIN, ASTM, etc. ) and all research demands
- Provides a wide range of shear stress measurements
- Optional complete data acquisition and evaluation software
- Determination the shear strength of undrained soft to stiff soils
- Test runs are completely repeatable
- Shear stress measured by two highly accurate load transducers, without friction

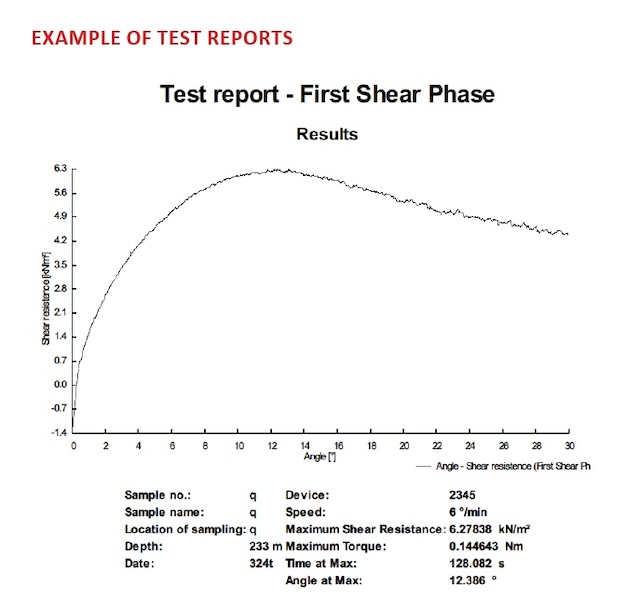

- Automatic recording of the shear resistance (torque) against displacement (angle)
Sample diameter |
50-200 mm |
Torque |
> 3 Nm |
Resolution |
0.001 Nm |
Torque accuracy |
Kl. 0.1 % |
Shear displacement |
unlimited |
Measuring range according to vane size |
0 – 466 kN/m2 |
Angular speed (stepless) |
0.0001°/s up to 20 °/s |
Data Transfer |
Ethernet |
Power Supply |
110 - 230 VAC / 50 - 60 Hz / 15 VA |
