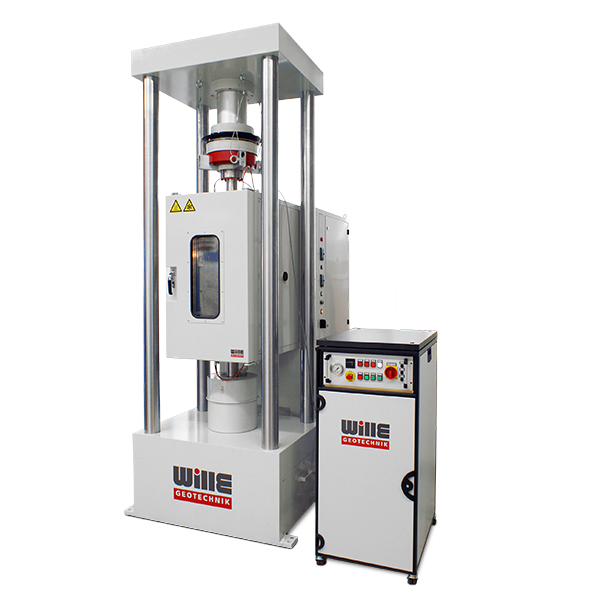

Fully Automatic Universal Load Frame

Fully automatic universal load frames of the brand mark Wille Geotechnik® are characterized by their robust, functional design with a large variety of semi-automatic and fully automatic controlling possibilities.

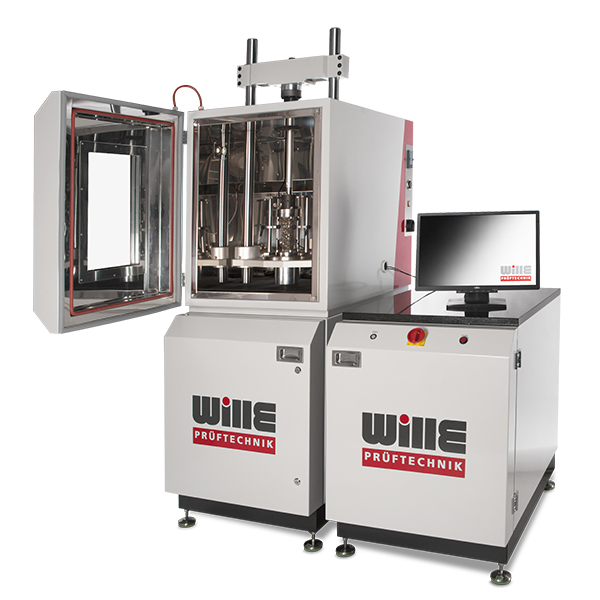

We manufacture multipurpose static and dynamic high precision load frames in the wide range of electromechanical types, servo pneumatic and also servo hydraulics. All the load frames has the feature to be equipped by temperature control chamber.












  • Features
  • Specifications
  • Upgrade Options
  • Software
  • Standards
  • Applications
  • Advanced closed-loop controlled load frame offers a large variety
    of controlling possibilities
  • High stiffness construction; precision aligned for static and
    dynamic testing on different materials
  • Can be configured with a variety of different modules for compression, tension and torsion tests with static or dynamic loading
  • Single or multi axis high resolution up to 20 bit data acquisition
    system
  • Available with upper adjustable crosshead for required vertical
    clearance
  • Control and data transmission via serial Ethernet port
  • For different applications:
    • Soil testing (e.g. offshore, earthquake, traffic)
    • Asphalt testing (stiffness plus fatigue)
    • Aggregate testing
    • Rock testing (triaxial and compression tests), concrete and
      any construction materials (compression tests)
    • Load capacities in the range of 1 N to 10,000 kN
  • Models:
    • Electromechanical type (cyclic and static)
    • Servo pneumatic type (cyclic and static)
    • Servo hydraulic type
  • Detailed information will follow soon
  • Not available
  • Not available
  • Not available
  • Detailed information will follow soon
