Automatic Cyclic Pressure/ Volume Controller (Cyclic VPC)
Cyclic Volume Pressure Controller is a High Accuracy Advanced Electro mechanic or servo hydraulic Closed-loop controlled Pressure System for Static and Cyclic Confining or cyclic Pore water pressure up to 4000 kPa with volume change control up to 1000 ml with different range of working frequency up to 10 Hz.

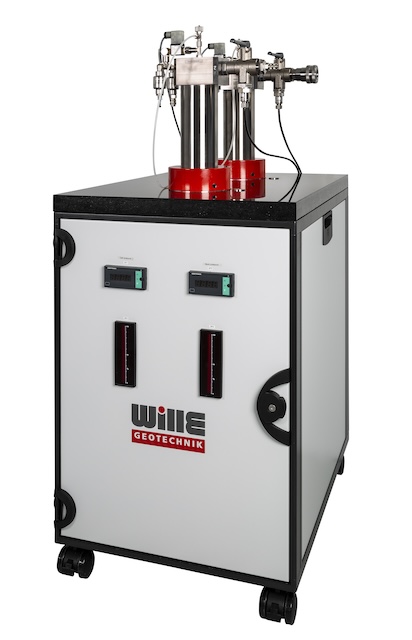

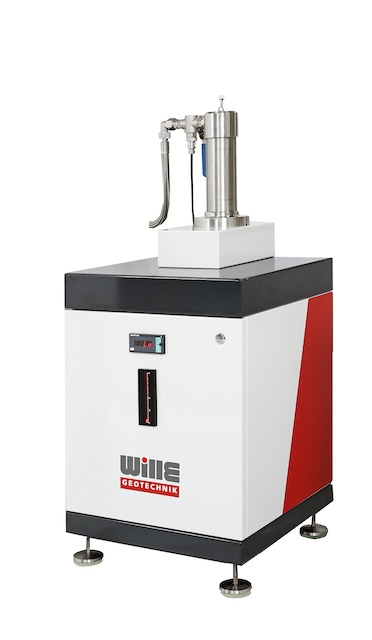

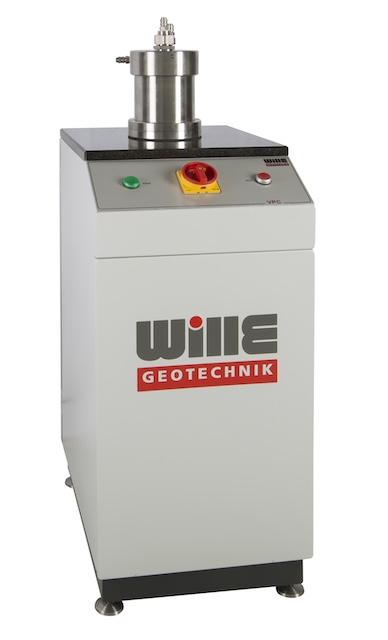

This series of pumps is available in single or twin configurations and can be either electromechanical or servohydraulic, depending on the test frequency requirements.
- Features
- Specifications
- Software
- Standards
- Applications
- Stainless steel Pressure chamber to avoid corrosion
- Ethernet and serial port with ASCII or LabView protocol
- Microprocessor-controlled precision syringe pump
- Compatible to LABVIEW©
- Direct operation of the device by a touch sensitive keypad or via PC with controlling software (communication protocol is available)
- Manual control or by software/PC
- Different modes of pressure control (e.g. constant pressure, pressure ramps, constant volume flow)
- Can be connected to all Triaxial and Permeability testing systems
- Fully automatic closed-loop pressure control by an internal high-pressure transducer
- Easy To handle
- Calibration data input via the integrated keyboard with password protection and permanent storage
- High quality industrial controller with displayer and membrane keys for monitoring of measured values and test procedures
|
Pressure Ranges |
2 MPa / 4MPa |
|
Volume Capacity |
500 or 1000 ml |
|
Material Of cylinder |
StainlessSteel |
|
Pressure accuracy |
0.1% F.S |
|
Pressure Resolution |
0.1 kPa |
|
Volume accuracy |
0.1% F.S |
|
Volume Resolution |
0.01ml |
The Pressure Volume Controller is controlled out via GEOsys software which is configured for each testing unit per as customer’s ordered parameters. The software operates the system and collects test data as defined for each test.
- Not available
- Dynamic control of cell pressure in Cyclic triaxial test System
- Dynamic control of pore pressure in Cyclic triaxial test System-Hollow cylinder test
- Dynamic control of inner-outer cell pressure in Hollow cylinder test device
- Eliminate disturbance to constant cell pressure in dynamic test cells without balanced ram
- Unbound triaxial test systems
