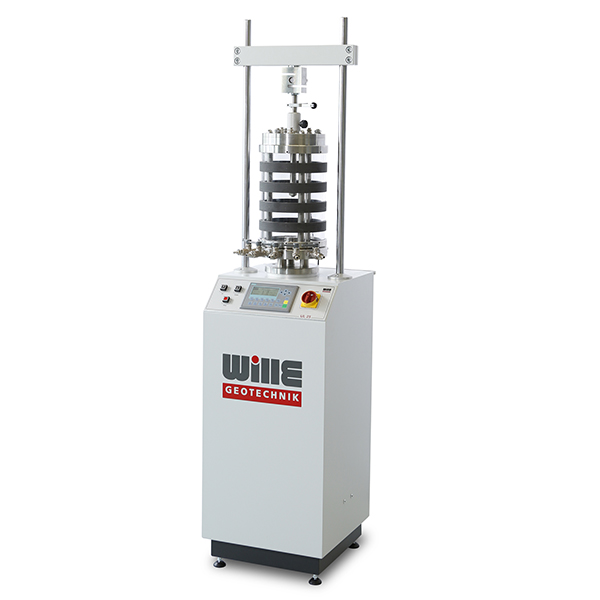

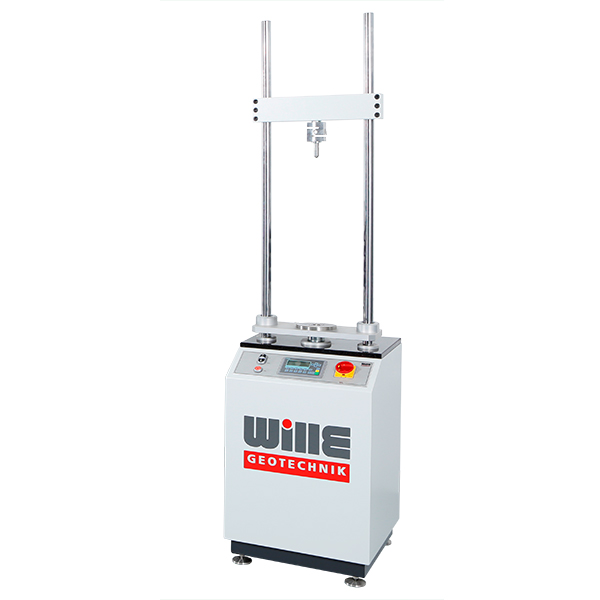

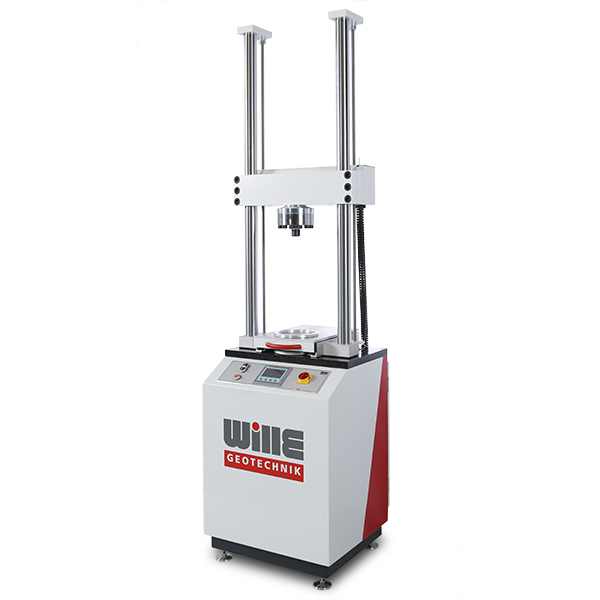

Static Universal Load Frames

Electromechanical universal load frames of the brand mark Wille Geotechnik® are characterized by their robust, functional design with a large variety of semi-automatic and fully automatic controlling possibilities.
The well-proven measurement and control electronics are assisted by a menu-driven monitoring system and enable the performance of complex analyses as well as stress-path tests.
Exchangeable, pre-calibrated measuring sensors guarantee high accuracy over a wide measuring range.
















When fitted with appropriate software modules and accessories, the fully automatic load frames are suitable for:

  • Triaxial shear tests
  • Stress-path tests, isotropic and anisotropic consolidation
  • Compression tests, oedometer tests
  • Uniaxial compression tests
  • Continuous or incremental loading
  • Swell tests and swell pressure tests

Normal force

0 – 10 kN 0 – 25 kN 0 – 60 kN 0 – 300 kN

Spindle lift

50 / 100 / 200 mm

Speed range

0.000001 mm/min to 10 / 30 / 60 / 100 mm/min

  • Not available
  • Not available
  • Not available
  • Detailed information will follow soon
