Large Direct Shear Test Systems

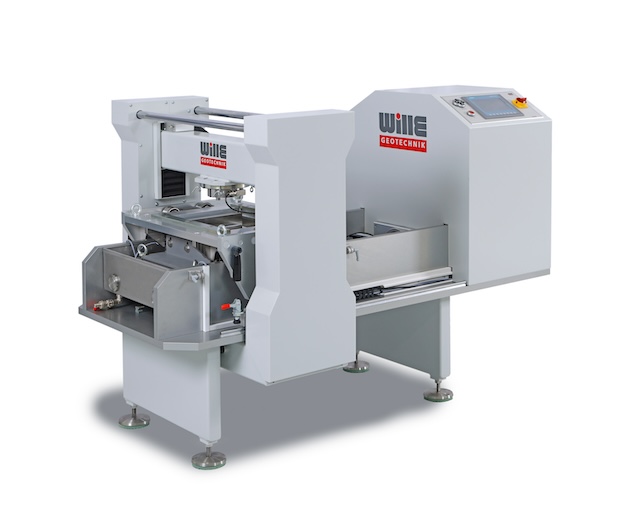

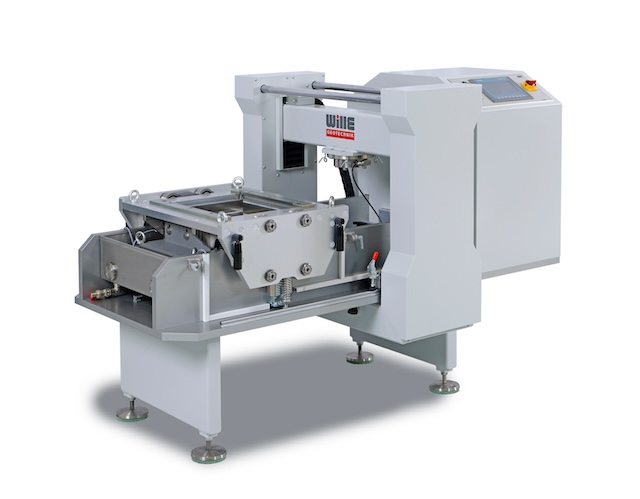

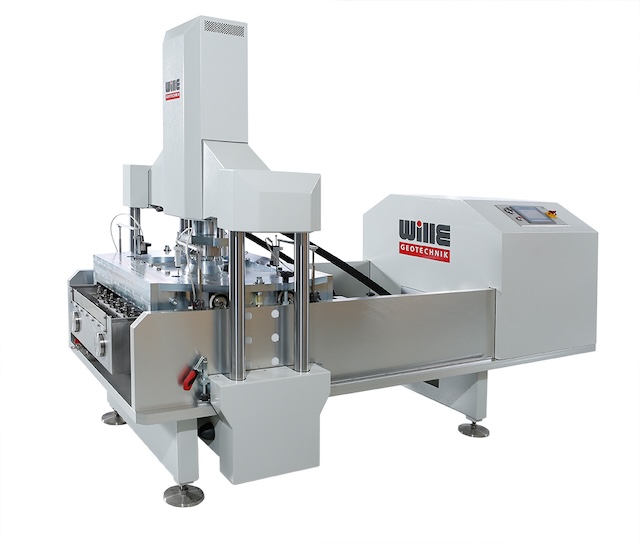

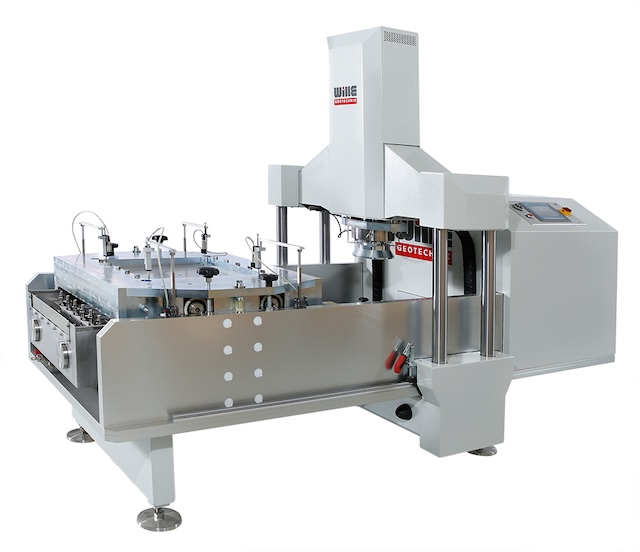

The fully automatic large shear box apparatus ADS-300, ADS-500 and ADS-1000 have been developed and designed according to the latest scientific findings and resulting testing demands (ASTM, EN and DIN).

To determine the friction behaviour of soils, gravels, geo-synthetics, recycling rubble or industrial slag.

Note: customized sample sizes and shear rates available on request.
















  • Testing apparatus to determine the internal friction of construction materials and friction parameters of interfaces between different construction material layers, such as: plastic liner/soil, geo-grid/soil, geo-textile/soil, plastic liner/geo-textile, geo-textile/concrete, concrete/asphalt, soil/soil, and gravel
  • The advanced and highly accurate shear box system, developed and exclusively offered by Wille Geotechnik® prevents tilting and wall friction throughout the test
  • A stainless steel water receiver is integrated in the lower and upper shear box for sample saturation
  • Creep test (optional)
  • Semi-automatic or fully automatic PC operation
  • Small and standard shear angles can be measured with high-levels of repeatability
  • Automatic wall friction compensation possible
  • Applicable for automatic test controls and monitoring of parameters and evaluation with shear software modules



Direct shear boxes:

  • ADS-300: 300 x 300 mm
  • ADS-500: 500 x 500 mm
  • ADS-1000: 1000 x 1000 mm

Maximum shear stress

300 / 600 / 1000 KPa

Normal stress (higher stresses on demand)

300 / 600 / 1000 KPa

Shear rate (infinitely variable, load independent)

20 – 0.00001 mm/min

Shear displacement

100 mm

Total dimensions (W x L x H)

600 x 1650 x 750 mm

  • Not available
  • Not available
  • ASTM D-3080
  • Standard Test Method for Direct Shear Test of Soils Under Consolidated Drained Conditions

  • ASTM D-5607
  • Standard Test Method for Performing Laboratory Direct Shear Strength Tests of Rock Specimens Under Constant Normal Force

  • BS 1377-7
  • Methods of test for Soils for civil engineering purposes - Part 7: Shear strength tests (total stress)

  • CEN ISO/TS 17892-10
  • Geotechnical investigation and testing -- Laboratory testing of soil -- Part 10: Direct shear tests

  • JGS 0560
  • Method for Consolidated Constant Volume Direct Box Shear Test on Soils

  • JGS 0561
  • Method for Consolidated Constant Pressure Direct Box Shear Test on Soils

  • Detailed information will follow soon
